Water level sensor CNR
Level sensor in piezometerLogger with buit-in battery, 2G/4G data sendingWater level sensor for groundwater monitoring

Relative pressure sensors CNR

  • Measuring range from 0 to 50m H2O
  • Connection to data logger LOG V4 with or without integrated modem
  • Batterie powered logger, autonomy > 5 years
  • Compact size and discret, rugged system
  • Communicating : HF /GSM / GPRS / 2G / 4G
  • Wireless setting with Rfid technology
  • Certifications : CE / ROHS / ACS(option)
  • Sealing IP68 (1 bar/30 days, if our bracket is used : H0T00060)

The pressure level data logger is fully autonomous, very practical for various applications. The programming is done very easily by radio and includes, depending on model, a modem for automatically send data and alert to the supervision.

Pressure level sensors CNR series

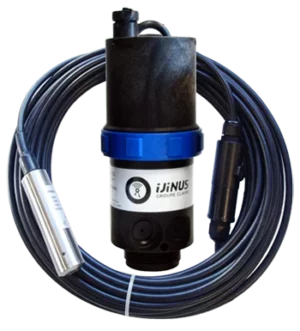

The level sensors from the CNR range easily connect to LOG V4 data loggers on connector
Configuration and retrieving data are done locally by radio with USB / HF programming stick, which integrates our software. If you opt for a logger with built-in modem, you can automatically send the data, reports and alerts to a compatible SCADA like Topkapi, Lerne, Panorama, Dev I/0 – OPC, Floee or to our web monitoring platform : Ijitrack.com.

The CNR series has 3 versions :

CNR serie with M12 8pts connector for a quick connection with the logger LOG V4
CNRT serie provides pressure & Temperature with M12 8pts connector for a quick connection with the logger LOG V4
CNRN serie with bare wire ends The above series include an atmospheric pressure aerators.

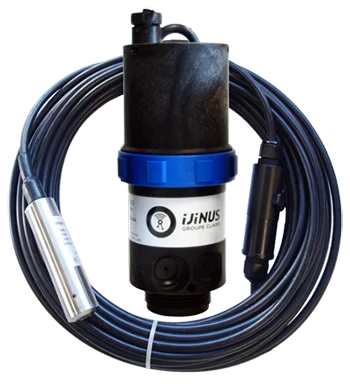

Wireless data logger to choose from :

LOG03V4 : 4-20mA – DIGITAL / Connector on the side
LOG09V4 : 4-20mA – DIGITAL / Connector at the bottom
These loggers have the added advantage to connect to other sensors and have their own functionalities.

Radio configuration kit :

HF / USB stick kit WijiKey (includes the software Avelour 6), about 20m radio range
HF / USB kit Wiji (includes the software Avelour 6), about 100m radio range



Environmental applications

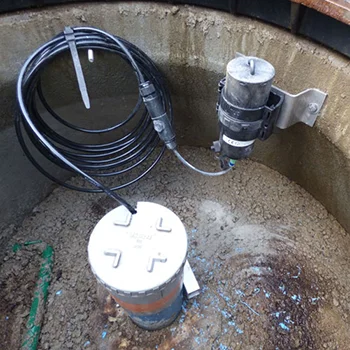

  • Autonomous and communicative solution for groundwater monitoring. It is also possible to pair the logger to a rain gauge by radio
  • Level monitoring in tank …
  • V notch weir with conversion water height / flow measurement
  • Pressure sensor with bare-wire ends to connect to PLC

Level sensors CNR specifications



Data logger LOG09V4
Logger 500 000 measures
Data access point Yes using radio / Modbus or cellular data transfer
Inputs 1x voltage input (5V…30V), 1x Modbus input (if not already used as an output), 2x 4-20 mA,
Outputs Radio HF (868 or 915 MHz),
2G/3G or 2G/4G (LTE-M / NB-IoT)
1x power supply output (5V…18V), 1x open drain output, 1x Modbus output (if not already used as an intput)
Radio communication 100M open field (Wiji protocol)
Antenna : radio / cellular Internal or external radio antenna – External for cellular antenna. See configurator for options
Temperature range
 -40 …85°C
Housing PA12
Sealing grade IP67
Energy
 Lithium Bat : 3,6V 34Ah
Configuration
 Configuration kit PN : MOC00001(868 MHz) or MOC00002 (915 MHz).
Both integrate the software AVELOUR 6 for the configuration and data analysis
Net weight
 302g





LOG09V4

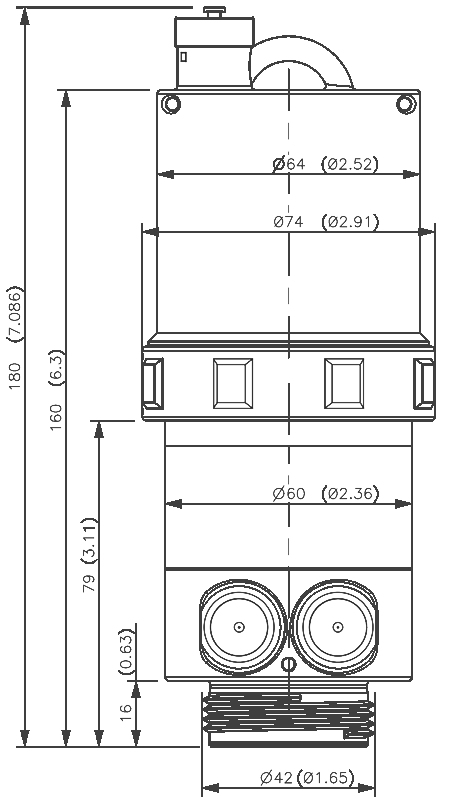

Dimensions LOG09V4
Compatible Loggers LOG03V4 : 4-20mA – Digital
LOG09V4 : 4-20mA – Modbus RS485

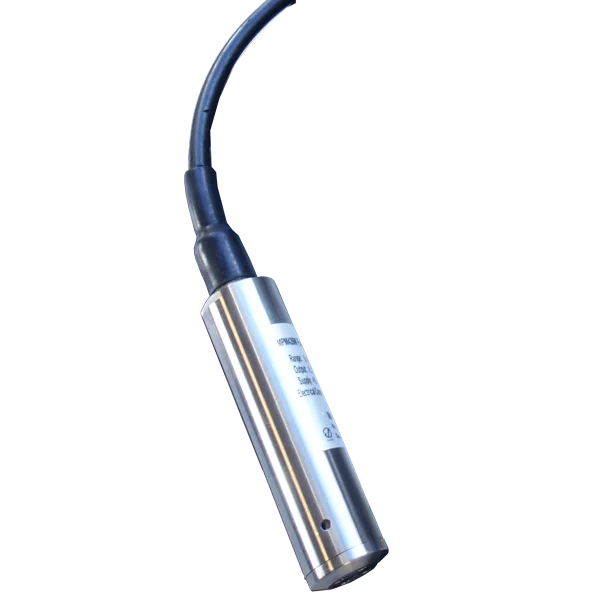

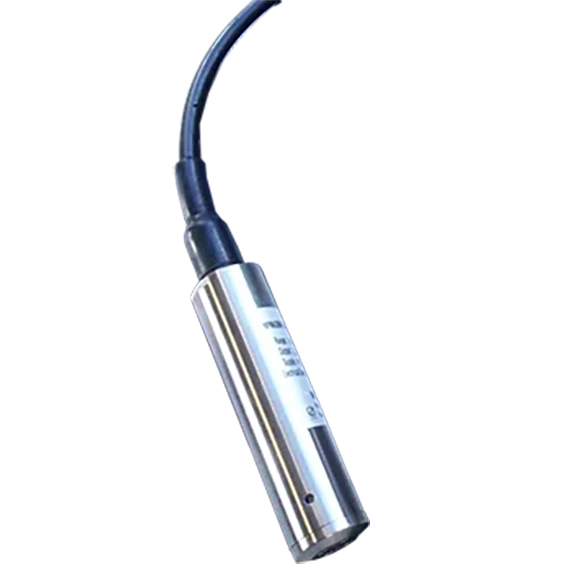

Relative pressure sensor – CNR serie
Measuring range 1 2 5 10 20 50 100 200 mH2O
Pressure Relative – Gage
Overpressure 1,5 x FS
Certification CE / ROHS / ACS
Response <10ms (10% ~ 90%)
Output Signal / power supply 4 ~ 20 mA / Min 15 – Max 30 VDC
Cable Ø7.5mm, Lenght available in 5, 10, 15, 20, 25, 40 and 60 m
Operating Temperature Normal : -10 … 80°C Max : -40… 100°C (Stockage)
Housing Diaphragm : Std : SS 316L Corps : SS 321 : lCr18Ni9Ti
Dimensions Ø26 x 120mm
Weight (CNR0001-A2-05) 904g
Atmospheric pressure aerator Integrated : Ø28MM- LG80MM E/S in M16x1.5 and M20 x 1.5

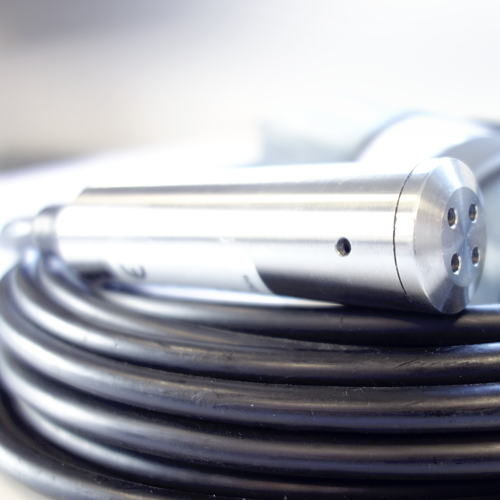

CNR sensor

Dimensions CNR sensor



Level sensors CNR documention

Icon

Relative pressure sensor CNR series

1 file(s) 226.31 KB
Download



Icon

Datasheet_LOG09V3 with CNR_level relative pressure sensor

1 file(s) 537.13 KB
Download



Icon

Battery Information Sheet

1 file(s) 606.64 KB
Download
