LNR06V4-LE radar water level sensors
Level loggers with integrated radar sensor have been specially designed to operate in extreme conditions where temperature, sealing and safety are essential. The LNR06V4-LE sensor is suitable for fixed or temporary installations, capable of measuring up to 6M. They have many advantages, including their ease of installation. A mounting plate (single or double) and a swivelling bracket guarantee optimal positioning in any situation. This sensor is also equipped with a 2-axis accelerometer, allowing its inclination to be known on site and remotely for optimal installation.
LNR06V4-LE features |
|
| Measuring range | 0,15 … 6m |
| Resolution | 2,000 points over the measurement range with a minimum of 1 mm (example: ± 4 mm for a distance measurement of 6.0m) |
| Accuracy | ± 0.2% of distance measurement with a minimum of ± 2 mm* |
| Communication | radio (868 or 915 MHz depending on country)2G / LTE M / NB IoT (depending on option chosen)) |
| Radio range | 100m open field (Wiji protocol) |
| Built-in logger | Capacity of 500,000 data |
| Radio hub function | Yes for nearby sensors |
| Temperature range | -40 … 85°C |
| Radio & Cellular Antennas | Internal or external radio antenna External cellular |
| Energy | Lithium battery 3,6V / 34Ah replaceable |
| Configuration | Radio configuration kit including AVELOUR software, cable and antenna |
| Technologies | 60 GHz radar imaging, eKo® algorithm, , LAMY® obstacle filtering |
| Certifications | Atex zone 2 : II 3G Ex ic ec IIB T4 Gc Tamb : -20°C…+60°C FCC ID: SE6A002 CE |
Housing |
|
| Housing material | PA12 |
| Antenna nut and connector | Inox A2 304 |
| O-ring | EPDM |
| Waterproofing | IP68: 1 bar for 30 days (only if using an Ijinus fixing bracket; PN: H0T00053 or H0T00060) |
| Dimensions | Ø 74 x 203.6mm (without antenna) |
| Weight | 579g including battery |

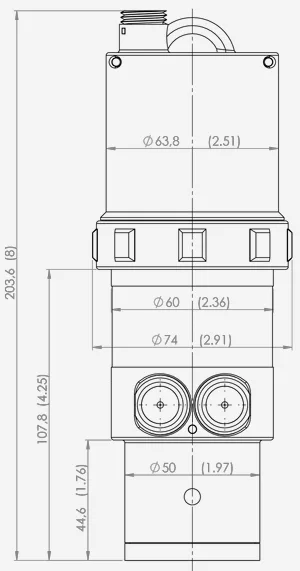

LNR06V4-LE dimensions |
|
