Piezometric monitoring, sources and rivers
CONTEXT :
As part of a call for tender, we worked in partnership with PCM INGENIERIE
Study to improve knowledge of the hydraulic and hydrogeological functioning of its territory.
- Standalone instrumentation solution on 30 stations
- Implementation of a network of communicating measurement data loggers.
- Sending data to the PCM STRYMO digital centralization and supervision platform (SCADA software)
- Quick and easy installation.
The choice of instrumentation:
- Piezometer monitoring with wireless data logger LOG09V4-82-LTE + CNR09 level sensor, (5 meter and 10 meter range, cable lengths can be adjusted to suit depths and maximum water depths). Stand-alone devices, internal battery with battery indicator integrated in the sensor. No need to return to the factory to change the battery. Data loggers with wireless radio parameterization (with Wiji radio dongle). Equipped with user-interchangeable 2G/4G LTE modem card. Compact Piezo positioned in the extension tubes, with external GSM antenna available for improved cellular communication.

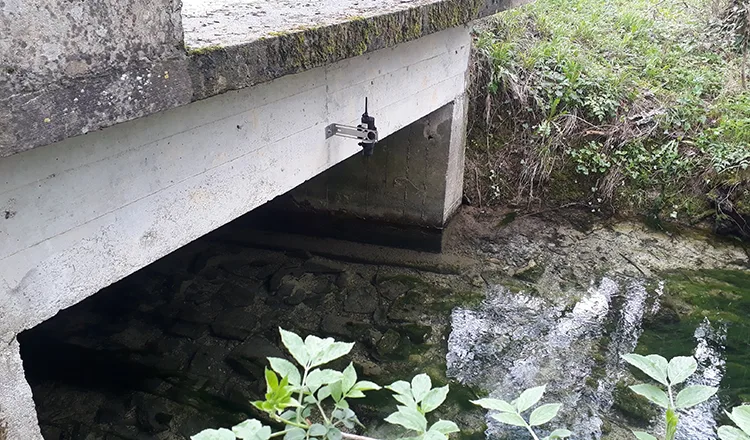

- Monitoring of sources and rivers with LNR06V4-82-LTE radar level sensor. 60GHz radar measurement (0.15-6 meters) not influenced by weather conditions (winds, temperature, etc.).

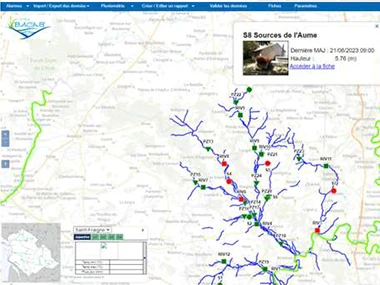

- The data is sent to the PCM STRYMO supervisor , and will help improve knowledge of how the aquatic environments in this area function.
